Demo Board Type:
ARM
Model Number:
Compute Module 3 Lite Acce A
Brand Name:
Waveshare
Model name:
Compute Module 3 Lite Acce A
Compute Module IO Board Plus:
Compatible with the Compute Module IO Board V3 from the Raspberry Pi
Include:
IO board, DS18B20, Power adapter, Micro SD card, etc
(NOTE: US Standard adapter will be sent in the package by default, if want to change to EU adapter, please leave us a message in the order)
Raspberry Pi Compute Module 3 Lite Accessory Pack Type A (no CM3L)
DESCRIPTION

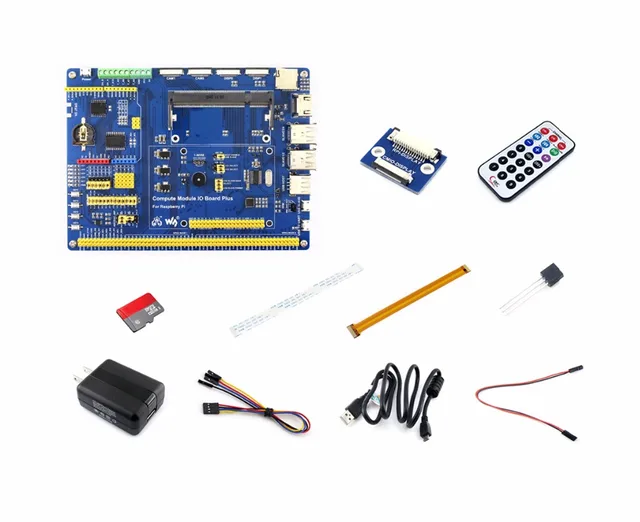

Raspberry Pi Compute Module 3 Lite Accessory Pack Type A, CM3 IO Board, DS18B20, IR Remote Controller, Micro SD Card
Overview
Since the Raspberry Pi Foundation released the Compute Module 3 Lite, you may have been watching it for some time, don't know how to get started. Now it's time to get moving. We prepare this accessory pack for you to evaluate the Compute Module 3 Lite (not included) quickly, reducing your development cycle.
The key parts in this Compute Module 3 Lite accessory pack includes:
- Compute Module IO Board Plus: Extend kinds of interfaces from CM3, such as USB, HDMI, just like the regular Pi, to help evaluating
Compute Module IO Board Plus Features
- Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
- Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
- Arduino connectivity, also supports Arduino shields
- 1-WIRE interface, for connecting single-bus devices like DS18B20
- 4x keys, 4x LEDs, 1x Buzzer, for I/O testing
- Onboard USB HUB, allows connecting more USB devices
- IR receiver, IR remote control is available
- Onboard USB TO UART, for serial debugging
- Sensor interface
- 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors)
- 16-bit DAC, 2-ch
- Onboard RTC, one of the most common and useful functions
What's on the Compute Module IO Board Plus
- Compute Module interface: for connecting Compute Module 3 OR Compute Module 3 Lite
- Compute Module GPIO header: breakout all the Compute Module pins
- Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
- CSI interface: camera ports, for connecting Raspberry Pi Camera
- DSI interface: display ports, for connecting Raspberry Pi LCD
- HDMI port
- USB ports: for connecting USB devices
- USB SLAVE interface: allows you to burn system image in to Compute Module 3
- USB TO UART interface: for serial debugging
- Arduino header: for connecting Arduino shields
- AD/DA input/output screw terminals
- 1-WIRE interface: for connecting single-bus devices like DS18B20
- Sensor interface
- Power port: 5V 2.5A
- FE1.1S: USB HUB chip
- 12MHz crystal
- CP2102: USB TO UART converter
- Micro SD card slot: insert a Micro SD card with pre-burnt system, to start up Compute Module 3 Lite
- TLC1543: AD converter
- DAC8552: 16-bit DAC, 2-ch
- DS3231: high-precision RTC chip, I2C interface
- RTC battery holder: supports CR1220 batteries
- Voltage regulator: 3.3V / 2.5V / 1.8V
- LFN0038K: IR receiver
- Buzzer
- Power indicator
- ACT indicator: indicating the Micro SD card status
- User LEDs
- User Keys
- BOOT selection
- EN: enable the PC to access SD card/eMMC through USB SLAVE
- DIS: the Compute Module will boot from SD card/eMMC
- VGx power selection: config the I/O level
- USB HUB enable jumper: HUB enable and USB SLAVE power selection
- ADC/DAC configuration: config the power supply and reference voltage of ADC/DAC
- Peripheral configuration: config the control pins of UART, user keys, user LEDs, 1-WIRE interface, IR receiver, and buzzer
- Arduino AD selection
- connect 1 and 2: Arduino A0-A5 as digital control pin
- connect 2 and 3: Arduino A0-A5 as AD input

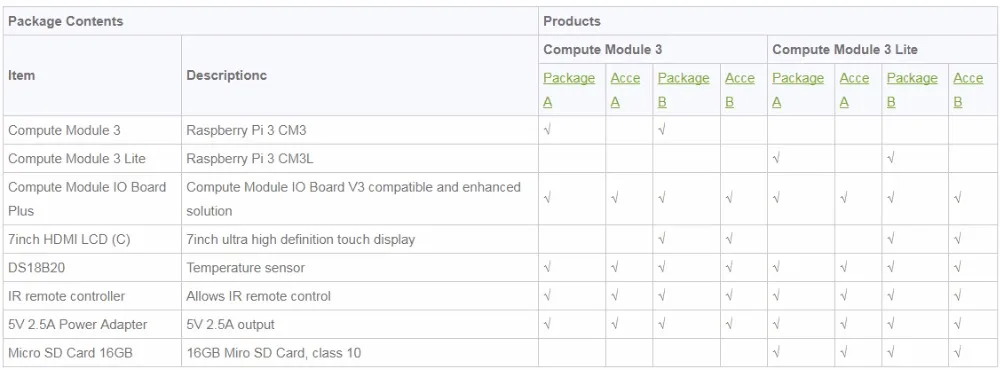

Selection Guide
PACKAGE CONTENT
Weight: 0.305 kg
Compute Module
The Compute Module 3 Lite is not included.

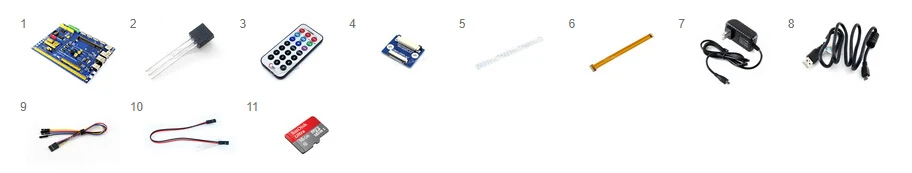

Accessory Pack
- Compute Module IO Board Plus x1
- DS18B20 x1
- IR remote controller x1
- LCD adapter x1
- 22PIN FFC x1
- RPi Zero V1.3 Camera Cable 15cm x1
- Power adapter US standard 5V/3A micro x1
- USB type A plug to micro B plug cable 120cm x2
- Jumper Wire 4-pin to separated pins x2
- Jumper Wire 2-pin 2.54-pitch 200mm x2
- Micro SD Card 16GB x1
Unit Type:
piece
Package Weight:
0.45kg (0.99lb.)
Package Size:
10cm x 20cm x 10cm (3.94in x 7.87in x 3.94in)
